Non-Invasive Ventilator

Non-invasive ventilation (NIV) refers to the administration of ventilatory support to provide breathing support through the patient’s upper airway using a mask without using an invasive artificial airway (endotracheal tube or tracheostomy tube). The use of Non-invasive ventilation has markedly increased over the past two decades, and Non-invasive ventilation has now become an integral tool in the management of chronic respiratory failure within the home setting. The NIV technique has allowed treatment to bypass the upper airway with a tracheal tube, laryngeal mask, or tracheostomy.

NIV Therapy provides the following outcomes:

NIV achieves benefits in COPD patients with persistent hypercapnia.
Control of arterial carbon dioxide tension (PaCO2) is a key target and high-intensity NIV is an effective way to achieve this.
NIV is a cost-effective therapy, as early results from the HOT-HMV study [35] suggest only five chronically hypercapnic COPD patients need to be treated with NIV to avoid one death.
Documented success of reducing hospital readmissions
No sleep study required
Detailed reporting for physicians

Hayat Home Medical Equipment has a committed clinical respiratory therapist who works exclusively with patients and physician’s office to make sure the highest level of care is ensured for patients to manage the care of Chronic Obstructive Pulmonary Disease (COPD).
Hayat’s COPD Care Management Program utilizes integrated, evidence-based care pathways and information technologies that manage and monitor patient care across the care continuum.

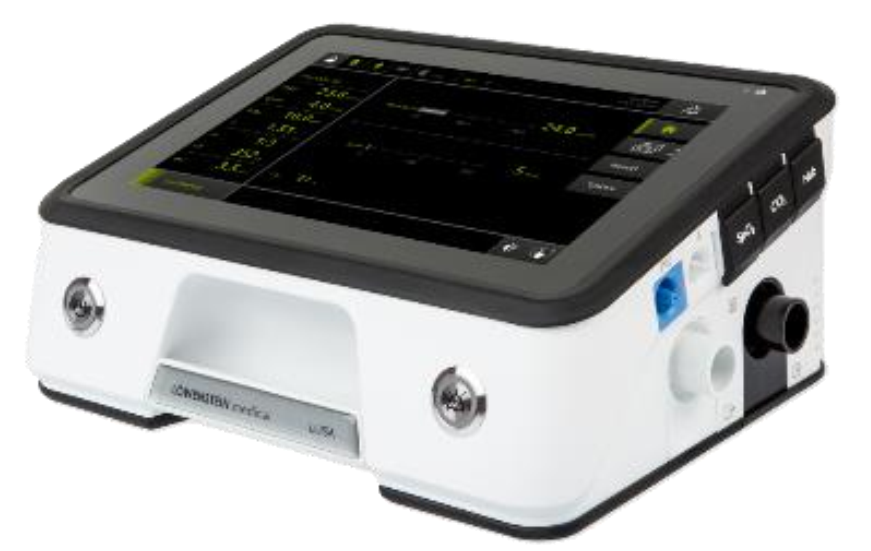

Luisa® at a Glance


Lightweight at ~ 8 lbs.


No adapters are needed.
10” angled touchscreen.
Ease of Use programming.
2nd alarm language.


High Flow Oxygen Therapy in all circuit systems.
100 – 3000 mL Vt without additional flow sensor.
Vertical or horizontal position functionality

Operable in up to 26 languages

Ventilator modes include LUISA’s targeted tidal volume, volume-assured pressure support, and auto EPAP (TTV-VAPS-AE).

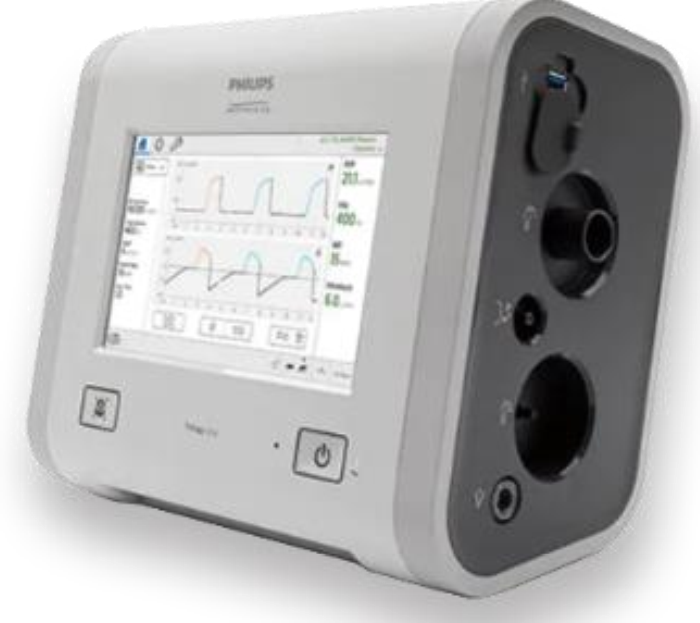

Trilogy - at a Glance


Weighing in at eleven pounds


Large easy to read screen.
Detachable internal battery.
Modem available- data to Care orchestrator.


Avaps -ae mode is designed to make breathing more comfortable by avoiding auto-peep and breath stacking. perfect for COPD.

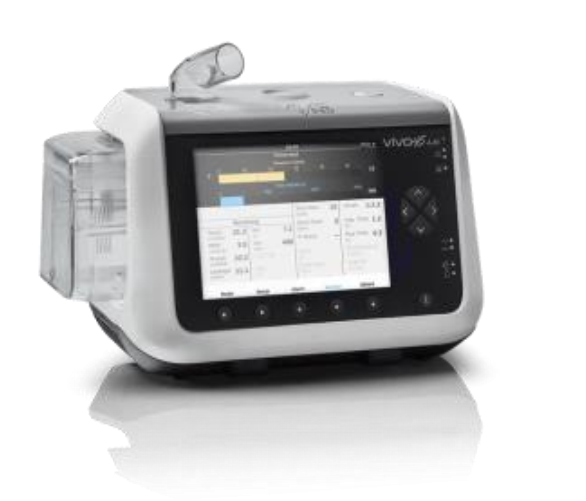

VIVO 45LS - at a Glance


Weighing just 5.3 pounds


The Vivo 45 LS’s patented esync patient breath-trigger technology provides patient comfort by adjusting to air-flow changes on a breath-by-breath basis.

It also recognizes and quickly accommodates air leaks around a mask or tracheostomy, which can minimize sudden, uncomfortable auto-triggering.

Leak compensation up to 70 lpm, still guaranteed volumes


measuring just 8.5 x 6.3 x 5.9 inches, the Vivo 45 LS is one of the smallest life- support ventilators on the market.
2.5 h internal + 6.5 h click-ion battery for use on the move

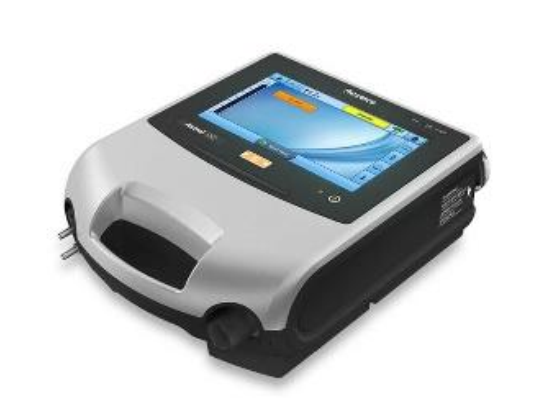

ASTRAL - at a Glance


Weight: 7.1 pounds


accommodate changing conditions during the night (e.g., when respiratory drive is impaired during REM sleep or when the patient moves to a supine position). iVAPS automatically adjusts the pressure support when – and only when – it’s needed.


Leak circuit therapy: CPAP, (S)T, P(A)C, iVAPS3 and optional AutoEPAP48

ntelligent Volume-Assured Pressure Support mode (iVAPS) secures target volume as well as alveolar ventilation, helping

Dimensions: 11″ x 8.5″ x 3.

Responsive algorithms deliver adaptive, personalized ventilation as the disease progresses.
